원래 장소: | 광동, 중국 |
브랜드 이름: | changier |
인증: | ce, ISO |
가격: | $25,000.00 - $28,000.00/sets |
---|---|
포장 세부 사항: | 나무로 된 패키지 |
공급 능력: | 100개 세트 / 세트마다 달 |
적용 가능한 산업: | 농장, 건설 작업, 식당, 에너지 & 광업, 호텔, 산업, 물고기 냉각, 해산물 냉각을 잡은 어업 | 상태: | 새롭습니다 |
---|---|---|---|
얼음 형태: | 박편빙 | 전압: | 3P |
힘: | 1200W | 차원(L*W*H): | 1680mm*1520mm*1450mm |
중량: | 4000 KG | 보증: | 1.5 년 |
핵심 판매 요소: | 작동하도록 쉽습니다 | 축냉 용량: | 아이스 빈 크기에 의존하세요 |
기계류 테스트 리포트: | 제공됩니다 | 화면 출하검사: | 제공됩니다 |
마케팅 타입: | 뜨거운 제품 2021년 | 핵심 구성 요소의 보증: | 1년이요 |
핵심 구성 요소: | PLC, 펌프, 모터, 압축기 | 압축기 브랜드: | 비트저, 코플랜드 |
애플리케이션: | 인더스트리얼 | 제어 시스템: | 지멘스 PLC 프로그램 제어 |
재료: | SUS304 스테인엘에스 강철 | 냉각 성분: | 단포스 |
전기 부품: | LG(ls) | 냉각제: | R22 또는 R404a |
얼음 두께: | 1.8mm~2mm | 타입: | 인더스트리얼 |
에프터 서비스: | 온라인 지원과 비디오 기술 지원 | 보증서 서비스 뒤에: | 현장 유지 보수와 수리 서비스 |
공항: | 상하이 |

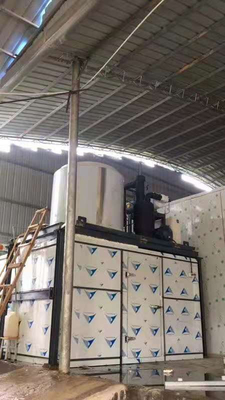

Large-scale industrial flake ice machines are widely used in industrial production or self-built ice factories due to the advantages of high refrigeration efficiency and large ice output. In areas with sufficient water resources, it is recommended to choose a water cooling system or an evaporative cooling system. Since the cooling effect of the air cooling system is relatively poor, it is only suitable for use in areas where water resources are scarce.
Large industrial flake ice machines should be equipped with ice storage with cold source. The size of the ice storage room is recommended to be configured according to 1/2 of the daily output. In special cases, the customer decides by himself. Large industrial ice machines are generally used in conjunction with ice storage and ice delivery systems.
1. High ice-making efficiency;
2. The power is relatively large, and the power supply capacity needs to be determined;
3. Color man-machine interface, the operation of the unit is clear at a glance, the operation is simple, and the maintenance is convenient;
4. The unit can choose piston/screw compressor;
5. There is no standard ice storage room, but non-standard customization is possible;
1. Preservation of raw materials in food factories and pre-cooling of food;
2. Pre-cooling, preservation and transportation of live-killed livestock and poultry in meat processing plants;
3. Chemical plant reaction kettle, raw material cooling, machine cooling and environmental cooling;
4. Concrete pouring and cooling in the construction industry, concrete mixing and adding;
5. Ice factory;
6. Ocean fishing seafood preservation;
7. Mine cooling.
